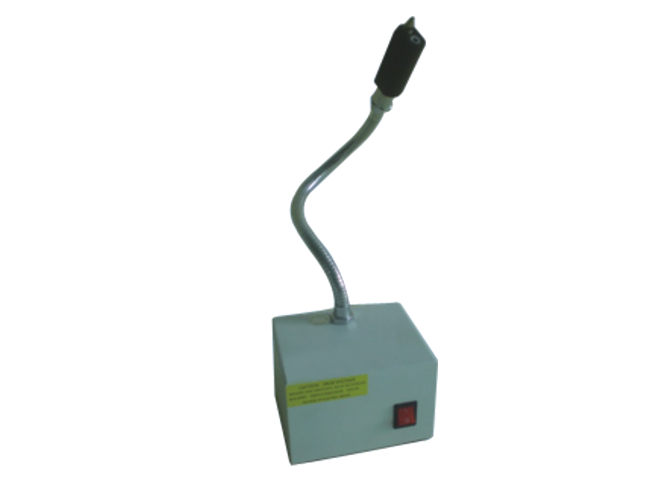

KP3008C Siamese ion wind snake

Model:KP3008C

KP3008C one-piece ion wind snake is a static elimination device developed and produced by Kapal to eliminate static electricity on the surface of objects. KP3008C Siamese Ion Wind Snake is a sitting and standing static eliminator, which can be manually de
application area
KP3008C Siamese ion wind snake

Product overview

KP3008C one-piece ion wind snake is a static elimination device developed and produced by Kapal to eliminate static electricity on the surface of objects.

KP3008C Siamese Ion Wind Snake is a sitting and standing static eliminator, which can be manually deformed to make the wind snake point to the target direction, so that the ion airflow can be directly blown to the target surface, which is easy to move, and can be placed in various work areas to eliminate static electricity. The dust removal effect is good, and it can only be used with compressed air. Optionally install foot switch or infrared photoelectric sensor switch to control airflow.

The KP3008C conjoined ion wind snake can generate a large amount of airflow with positive and negative charges, which can neutralize the charges on objects. When the surface of the object is negatively charged, it will attract the positive charge in the airflow. When the surface of the object is positively charged, it will attract the negative charge in the airflow, so that the static electricity on the surface of the object is neutralized and eliminated. purpose of static electricity.

KP3008C conjoined ion wind snake is used in electronic assembly line, medical device manufacturing, semiconductor production and flat panel display manufacturing and other industries.


Product features

* Quickly eliminate static electricity.

* Small size and space saving.

* A regulator can be added to adjust the airflow size arbitrarily.

* Optionally install infrared photoelectric sensor switch to avoid manual operation for customers to choose.

* The wind snake can be rotated to make the nozzle point to the target position, and the ion airflow can be directly blown to the target surface without manual operation.

* Wind snake has a good grounding protection function.


Technical parameter

Use voltage

220V/50Hz or 110V/60Hz

The output voltage

AC 4.6KV

power

26W

working distance

100-300mm

Ion balance

≤|±35V|

Power down time

≤2S

Operating temperature

0℃-50℃

Working humidity

<70%

noise

<70dB

weight

3.0kg

surface

paint

use medium

clean compressed air

Air supply connector

Ф8mm(Customized according to customer requirements)

compressed air pressure

0.3-0.8Mpa

Air velocity

3-10m/S

Coil length

525mm

Power cord length

1.8M


Test result

Test Conditions

Humidity: ≤60% Test voltage: 1KV-100V Ambient temperature: 22℃

distance

300mm

Neutralization time

just

0.8s

burden

0.9s

residual voltage

≤±35V

* The test results of the test instrument using ME268A electrostatic comprehensive tester shall prevail.

* Tested according to IEC-61340-5-1 A·6.

* Tested data may vary due to changes in ambient temperature and humidity.
